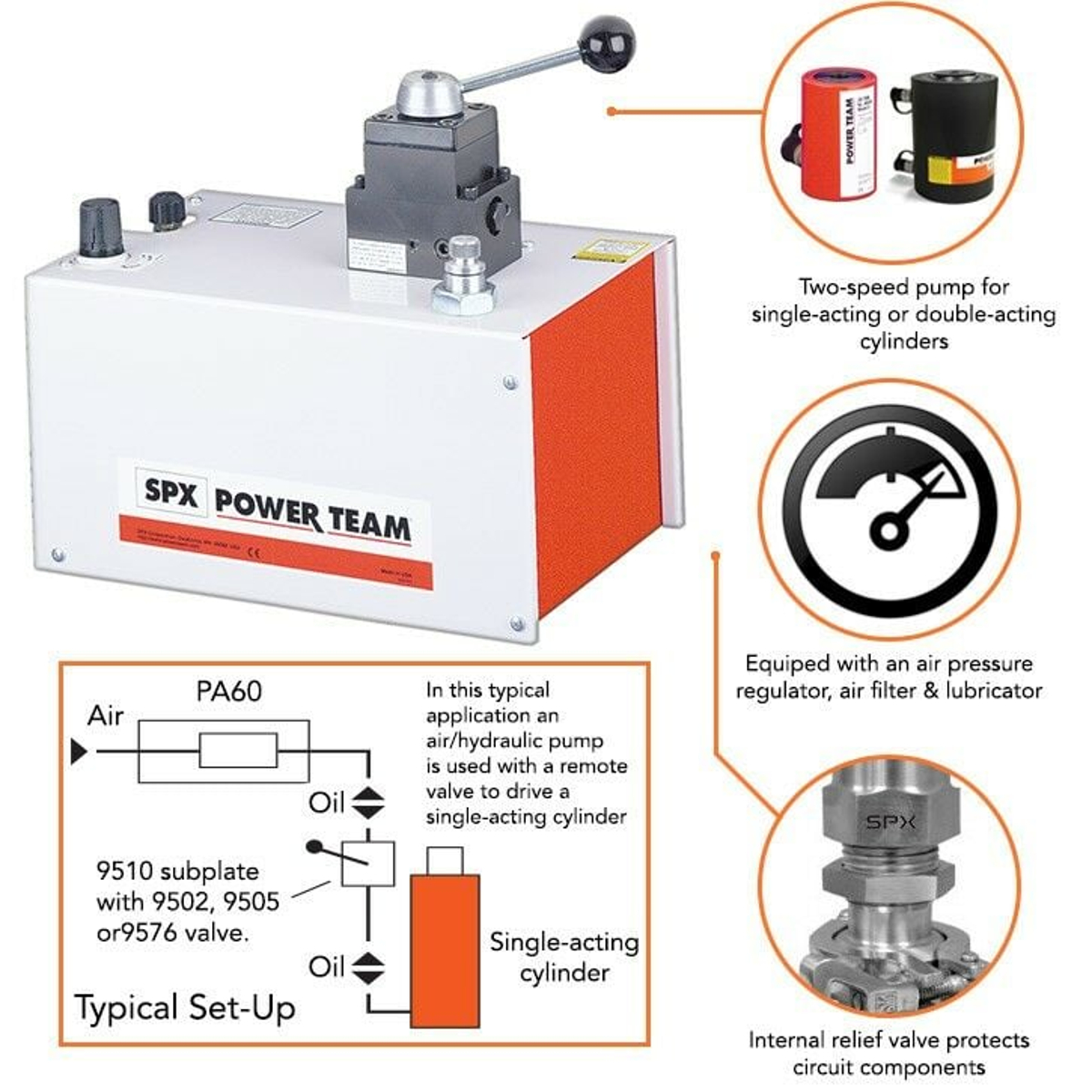

The PA64 is a Power Team two-speed hydraulic air pump for rapid oil delivery at low pressure to quickly advance the cylinder or tool. This pump has an oil reservoir capacity of 7.6l (6.8l usable). For use with single - or double-acting cylinders. Air inlet port 1/4" NPTF. Requires 20 cfm at 100 psi shop air pressure at the pump.
| Part Number | PA64 |
|---|---|
| Display Weight | 24.5 |
| Warranty | Lifetime Warranty |
| Brand | SPX |
| Oil Capacity | 7.6l capacity (6.8l usable) |
| Valve Number | 9507, 3 way / 4 way |
| Air Supply Required | 3-8 bar |
| Oil Port | 3/8-NPTF |
| Max Pressure Output (Bar) | 700 bar |

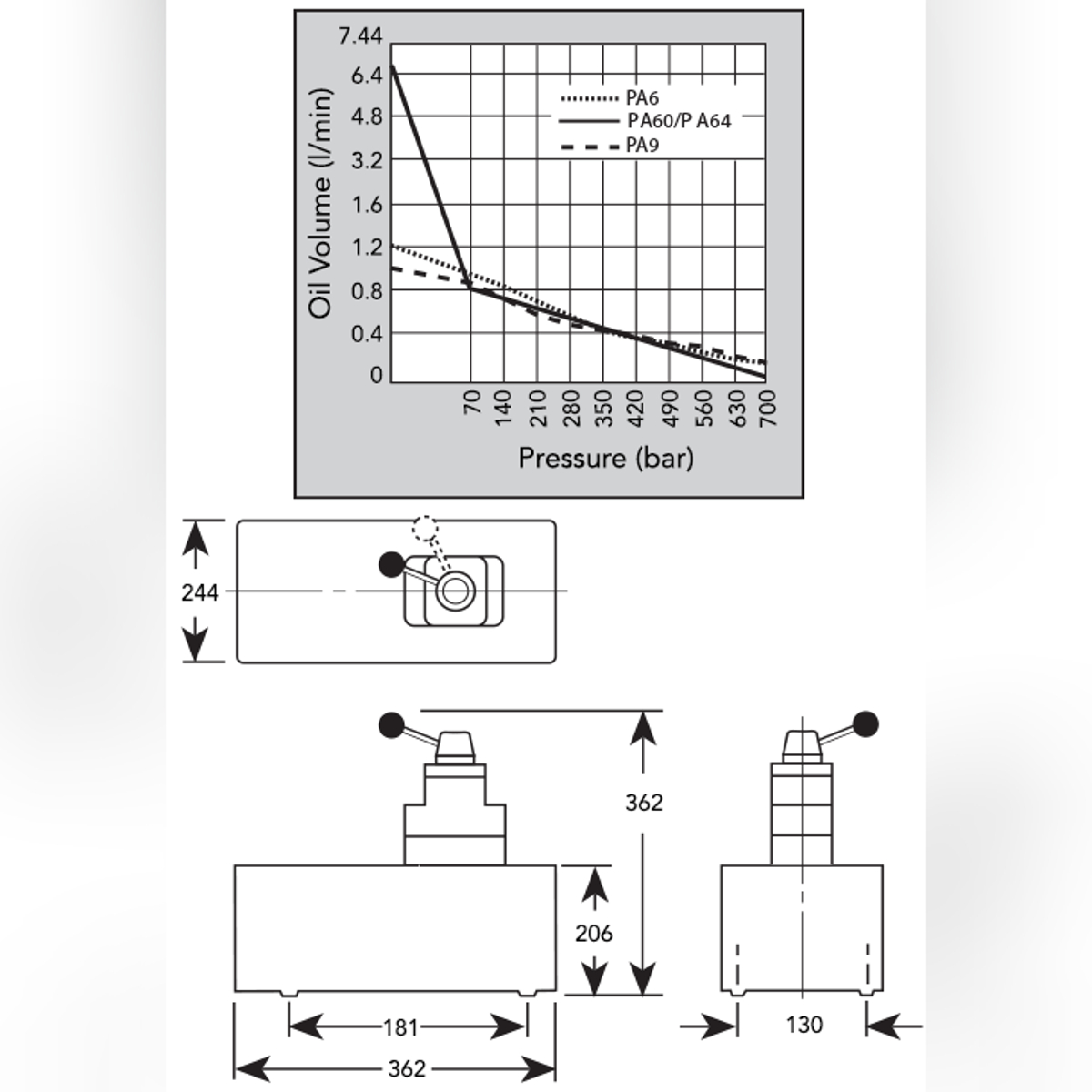

| Oil Delivery | 6.24l at 0 bar /5.6l at 7 bar /0.8l at 70 bar /0.19l at 350 bar / 0.1 at 700 bar |
Product Manuals
Leave a Review
Write a review
Product Description
The PA64 is a Power Team two-speed hydraulic air pump for rapid oil delivery at low pressure to quickly advance the cylinder or tool. This pump has an oil reservoir capacity of 7.6l (6.8l usable). For use with single - or double-acting cylinders. Air inlet port 1/4" NPTF. Requires 20 cfm at 100 psi shop air pressure at the pump.
Technical Specification
| Part Number | PA64 |
|---|---|
| Display Weight | 24.5 |
| Warranty | Lifetime Warranty |
| Brand | SPX |
| Oil Capacity | 7.6l capacity (6.8l usable) |
| Valve Number | 9507, 3 way / 4 way |
| Air Supply Required | 3-8 bar |
| Oil Port | 3/8-NPTF |
| Max Pressure Output (Bar) | 700 bar |
| Oil Delivery | 6.24l at 0 bar /5.6l at 7 bar /0.8l at 70 bar /0.19l at 350 bar / 0.1 at 700 bar |
