Power Team RH206 20 Ton 152.4mm Stroke Centre Hole Hydraulic Cylinder - RH Series

Product Code: RH206

£1,059.74 £883.12 £1,513.92 Save £454.18

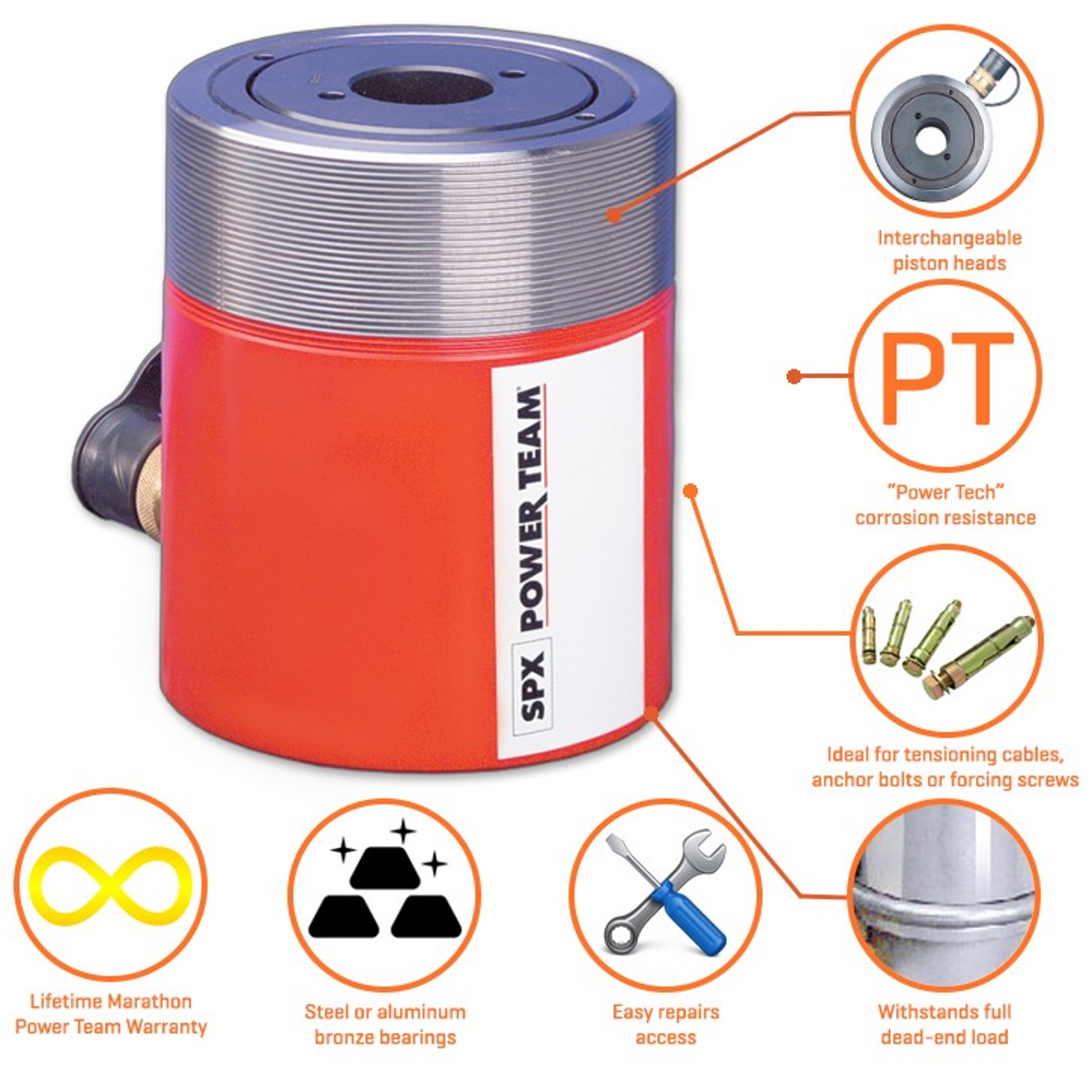

20 ton single-acting, spring-return, 152.4mm stroke SPX Power Team centre hole hydraulic cylinder. Ideal for pulling and tensioning of cables, anchor bolts, forcing screws, etc.

All RH series cylinders except RH120 are furnished with a 9796 3/8" NPT female half coupler. Aluminum cylinder body and piston are featured on the RHA306 Cylinder. Model RH203 and RHA306 do not feature the collar thread.

ASME B30.1 10,000 PSI / 700 Bar

Buy Power Team RH206 20 Ton 152.4mm Stroke Centre Hole Hydraulic Cylinder - RH Series by SPX for only £1,059.74
Buy Power Team RH206 20 Ton 152.4mm Stroke Centre Hole Hydraulic Cylinder - RH Series by SPX for only £1,059.74
Part Number RH206
Display Weight (Kg) 13.7
Warranty Lifetime Warranty
Brand SPX
Capacity (Tons) 20 Ton
Stroke Length 152.4mm
Oil Capacity 465cm3
Cylinder Type Centre-Hole
Cylinder Effective Area 30.4cm3
Metric Tons at 700 bar 20 ton
