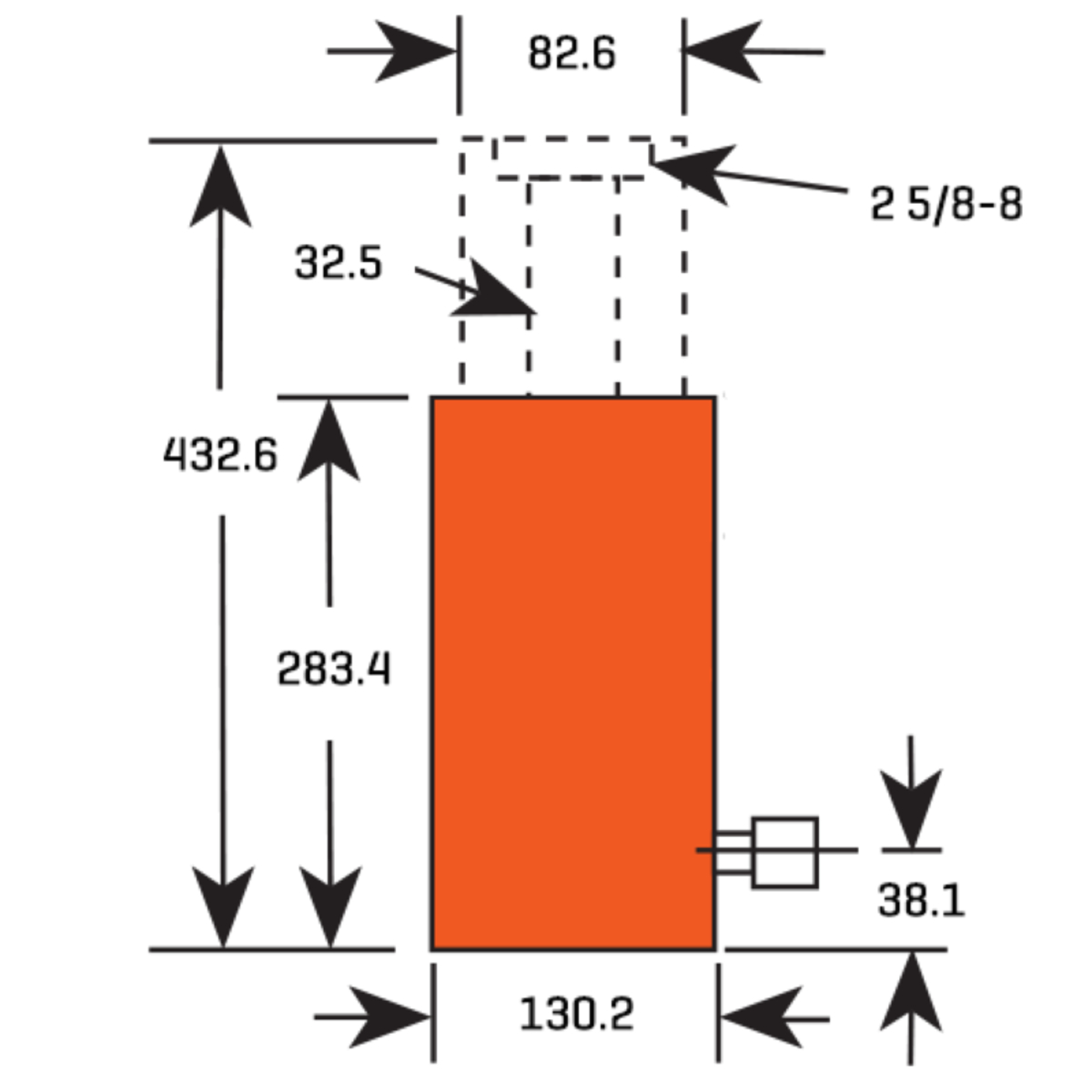

Power Team RH306 30 Ton 152.4mm Stroke Centre Hole Hydraulic Cylinder - RH Series
Product Code: RH306
- In stock
- Lifetime Warranty
- 4 months at 0% interest with PayPal Credit. click for more info

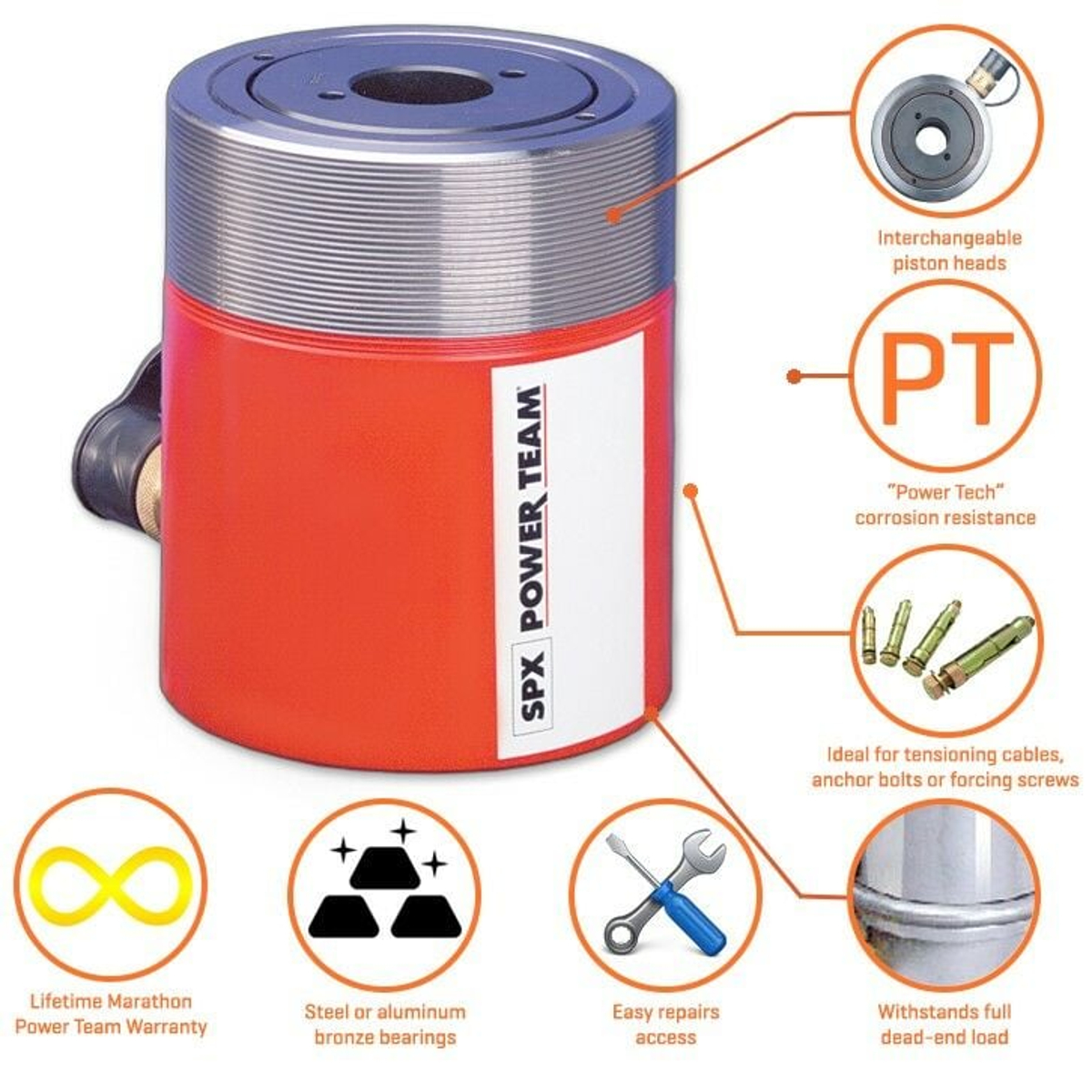

30 ton single-acting, spring-return, 152.4mm stroke SPX Power Team centre hole hydraulic cylinder. Ideal for pulling and tensioning of cables, anchor bolts, forcing screws, etc.
All RH series cylinders except RH120 are furnished with a 9796 3/8" NPT female half coupler. Aluminum cylinder body and piston are featured on the RHA306 Cylinder. Model RH203 and RHA306 do not feature the collar thread.
ASME B30.1 10,000 PSI / 700 Bar
Part Number | RH306 |
Display Weight (Kg) | 17.7 |
Warranty | Lifetime Warranty |
Brand | SPX |
Capacity (Tons) | 30 Ton |
Stroke Length | 152.4mm |
Oil Capacity | 625cm3 |
Cylinder Type | Centre-Hole |
Cylinder Effective Area | 40.9cm3 |
Metric Tons at 700 bar | 30 ton |
