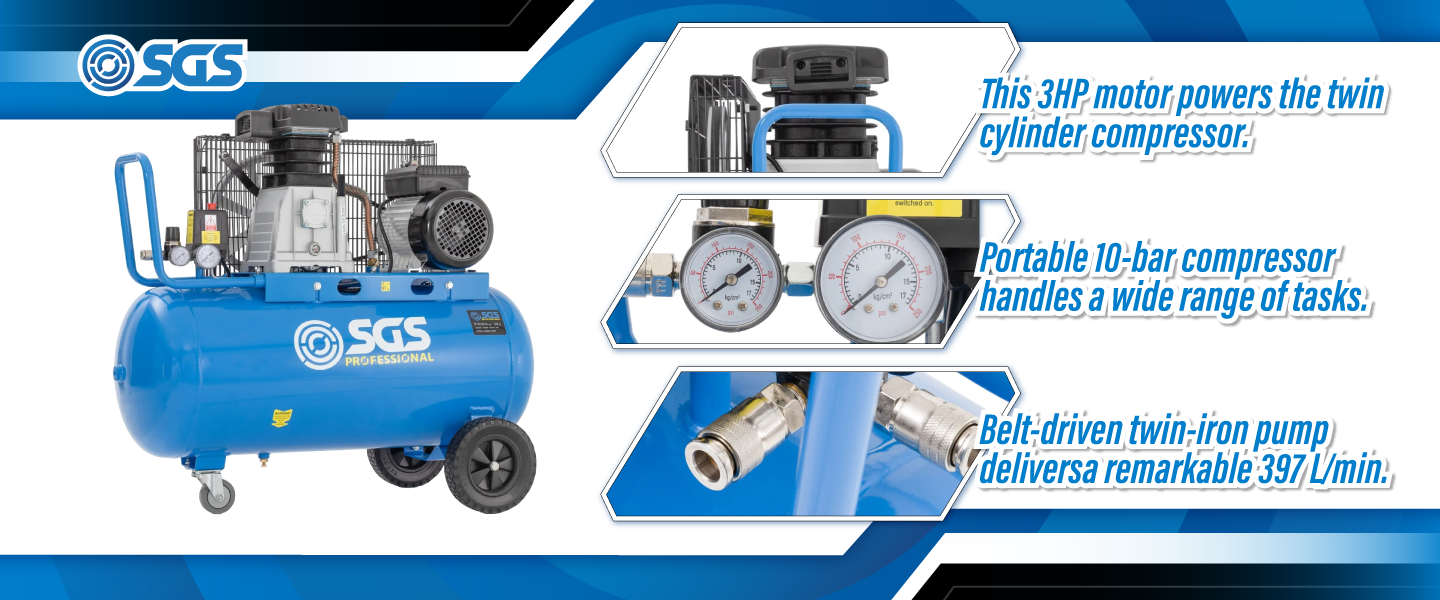

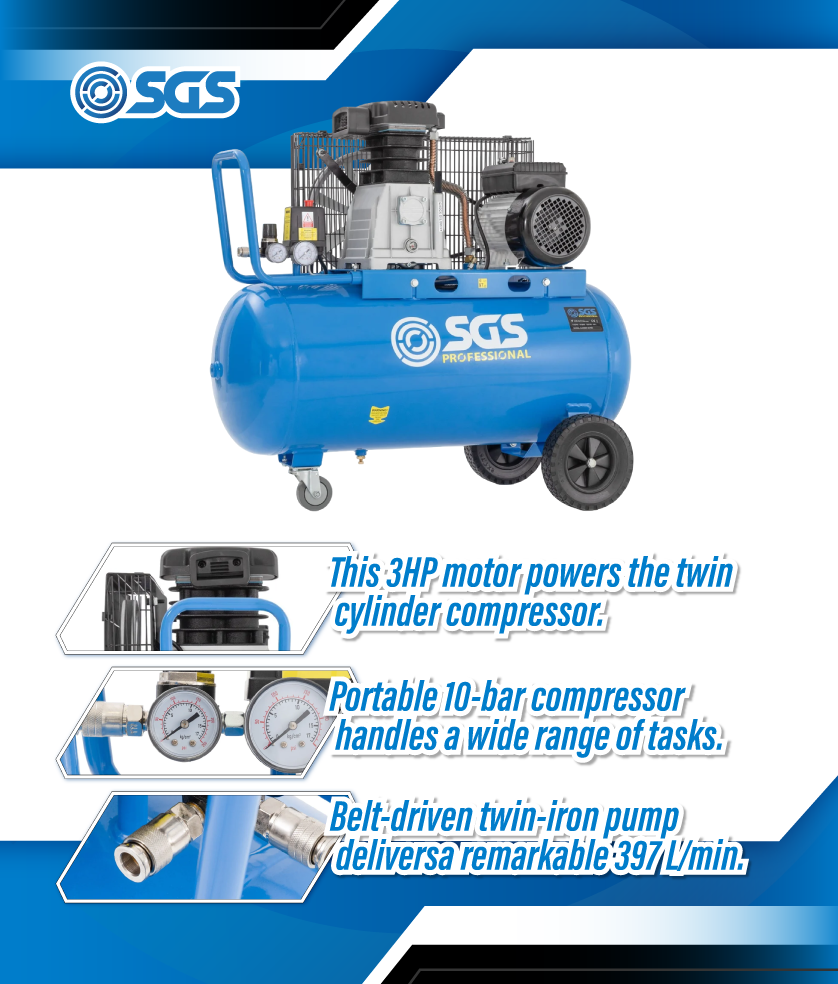

The SGS 90 litre air compressor is is a must for professional workshops, garages and enthusiasts alike. Extremely effective thanks to it's impressive 90L capacity coupled with a very high 14cfm air displacement. Well balanced twin cylinder, slow running belt drive pump powered by a 3HP 230V single phase motor.
This compressor displaces an impressive 397 litres/ Min (14CFM) from its heavy duty, in-line twin cast iron cylinder pump. For regular use around the garage or workshop, this fully portable machine operates up to a maximum pressure of 10 BAR (150psi). Fitted with an air outlet pressure regulator and twin outlet quick release couplers.
Air Receiver Volume: 90 Litre
Air Displacement: 14 CFM
Max. Working Pressure: 10 BAR / 150 PSI
Horse Power: 3 HP
Wattage: 2,200 Watts
Input Voltage: 230V
Air Outlets: 2
Dimensions: 990 x 440 x 880mm
This machine uses an industrially rated induction motor and must be operated from a heavy duty power supply and not from extension cables. We recommend at a minimum a 16 amp or higher power supply.
Will this compressor run from a normal 13 amp socket?
It will on some installations but because suitable conditions cannot be guaranteed we recommend a dedicated 30 or preferably 45 amp supply which will accommodate the motor starting current of 2 to 3 times the full load current of some 6,500 watts.
