50 Ton Hydraulic Press - Hand/Air Pump

High Quality Precision Engineering From SGS

Was: £1,499.99 Excl. VAT £1,799.99 Incl. VAT

Sale: £1,259.95 Excl. VAT £1,511.94 Incl. VAT

Product Code: SHHP50
PayPal credit available on orders over £250
50 Ton Hydraulic Press - Hand/Air Pump

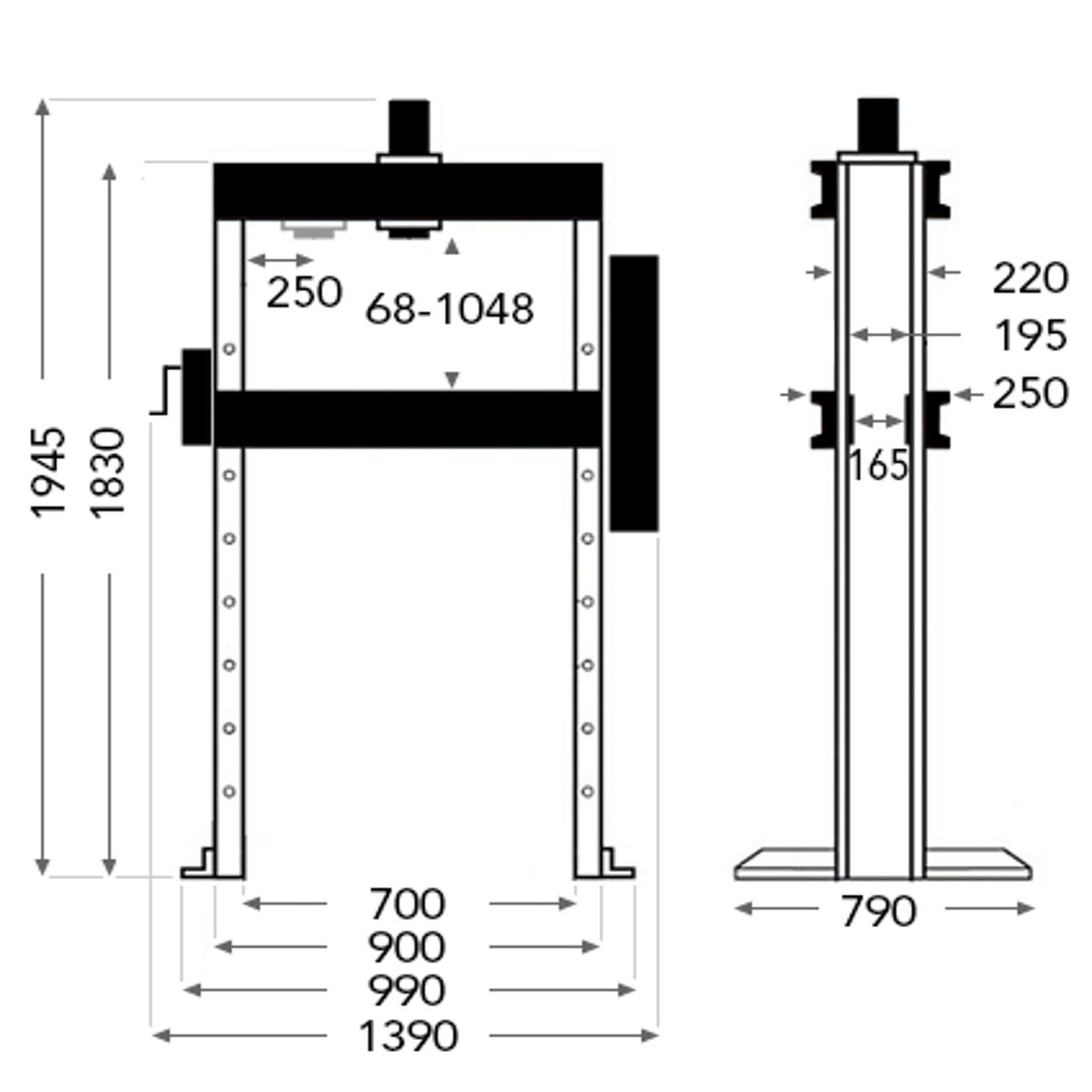

Technical Dimensions

50 Ton Hydraulic Press - Hand/Air Pump

Product Specifications

Part Number SHHP50
Product Weight 324kg
Warranty 10 Year Warranty
Brand SGS
Certified To CE Rated
Pressing Capacity 50 Ton
Cylinder Stroke 200mm
Cylinder Diameter 65 mm

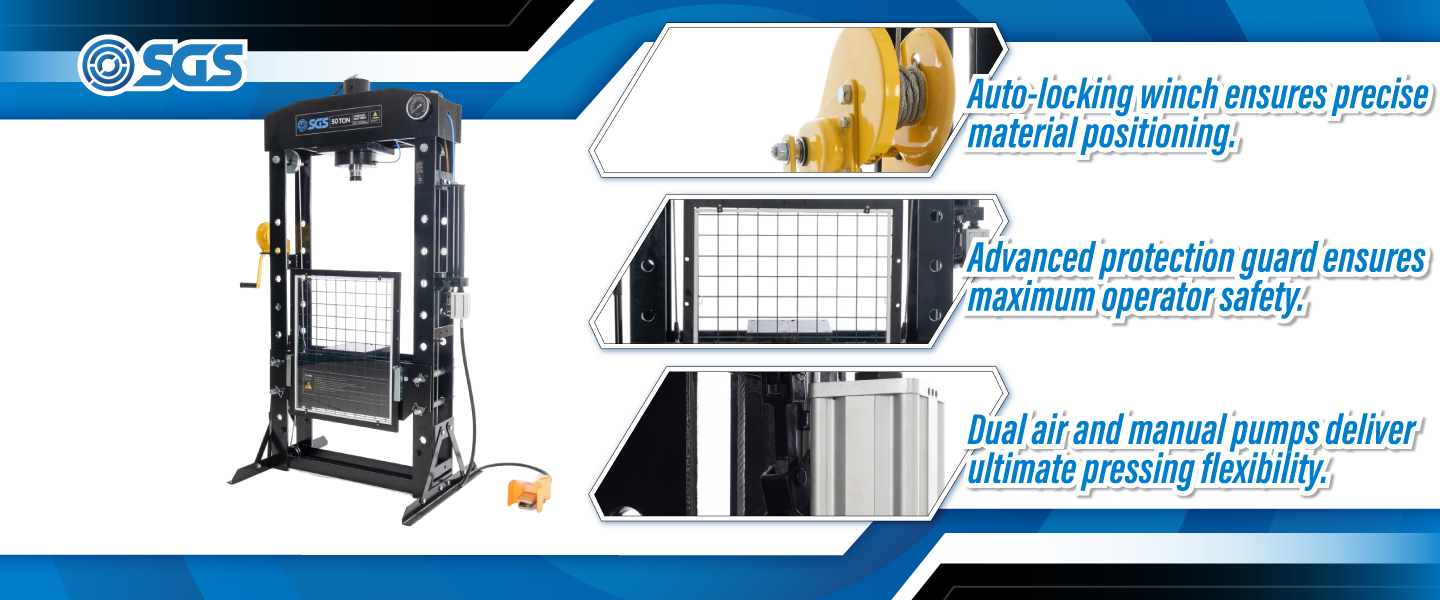

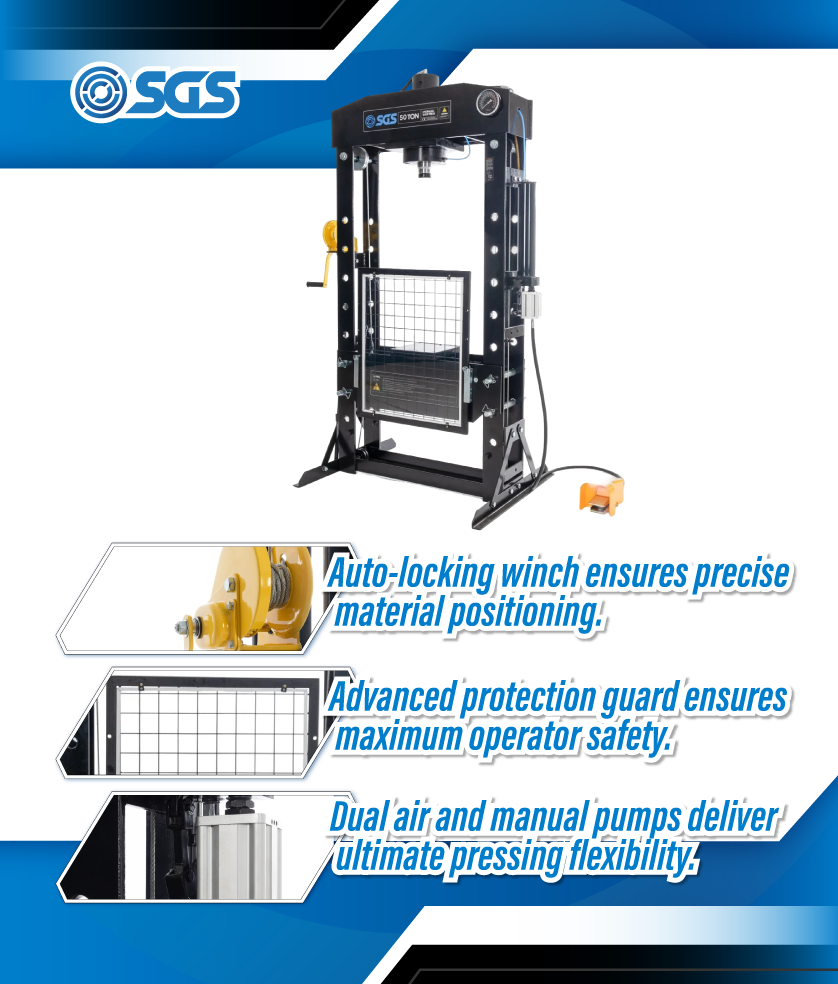

Key Features

  • 50 Ton capacity cylinder
  • Hand and air operated hydraulic pumps with foot control
  • 200mm stroke cylinder
  • 68-1048mm bed height
  • Can be used with or without safety guard
  • Lateral cylinder head movement for off-centre pressing
This 50 Ton floor mounted hydraulic press is capable of bending, pressing or extruding and makes light work of installing ball joints, U-joints and pulleys. Ideal for many automotive and industrial applications. Supplied with a hydraulic air pump and hand pump, protection guard, dual use v-blocks for cylindrical work pieces and flat pressing plates, positioning winch with auto lock, foot control and gauge. The cylinder head can be effortlessly moved across the upper beam via the adjustment wheel for off-centre pressing jobs.

Supplied fully assembled and carton packed on a pallet.

This press exceeds the latest UK safety standards and is CE, TUV and GS marked.


  • Delivery
    Review by S Jones
    (Posted on 17/07/2012)
    50 Ton workshop press
    A super press. Really sturdy and tough, I like how the cylinder has a foot control operation as well as the pump handles. Makes light work of pushing bearings out of hubs. Great value press, especially with all the extras you get compared to others i've looked at.
