SGS 75 Tonne Hydraulic Press with Two-Speed Hand & Air Pumps
This item is premises delivery only.
3 monthly interest-free payments of £766.66. No hidden fees, 18+, terms apply. Learn more.
4 interest-free payments of £575.00. Learn more.
Add SGS Protect with Admiral theft & accidental damage cover with easy claims handling. Learn more. | Brand | SGS |
| Capacity | 75 |
| Colour Attribute | Black |
| Cylinder Model | 45# seamless steel tube |
| EAN | 5055462717725 |
| G - Cylinder Piston Top to Port (mm) | 240 |
| Gross Weight (kg) | 535.00 |
| Material | Metal |
| Net Weight (kg) | 462.00 |
| Product Height (mm) | 2124 |
| Product Length (mm) | 1370 |
| Product Width (mm) | 830 |
| Warranty | 10 Year Warranty |
The SGS 75 Tonne Hydraulic Press with Two-Speed Hand & Air Pumps is a powerful, industrial-grade solution designed for demanding pressing, straightening, and assembly tasks. Built for workshops, garages, and heavy-duty environments, this press delivers exceptional force and versatility, making it suitable for professional engineering and manufacturing applications.
Equipped with both hand and air-operated hydraulic pumps, this press offers flexible operation depending on your working requirements. The air-assisted function improves efficiency and reduces effort, while the manual hand pump provides reliable control when needed. A foot control system further enhances ease of use, allowing you to operate the press with greater precision and convenience.

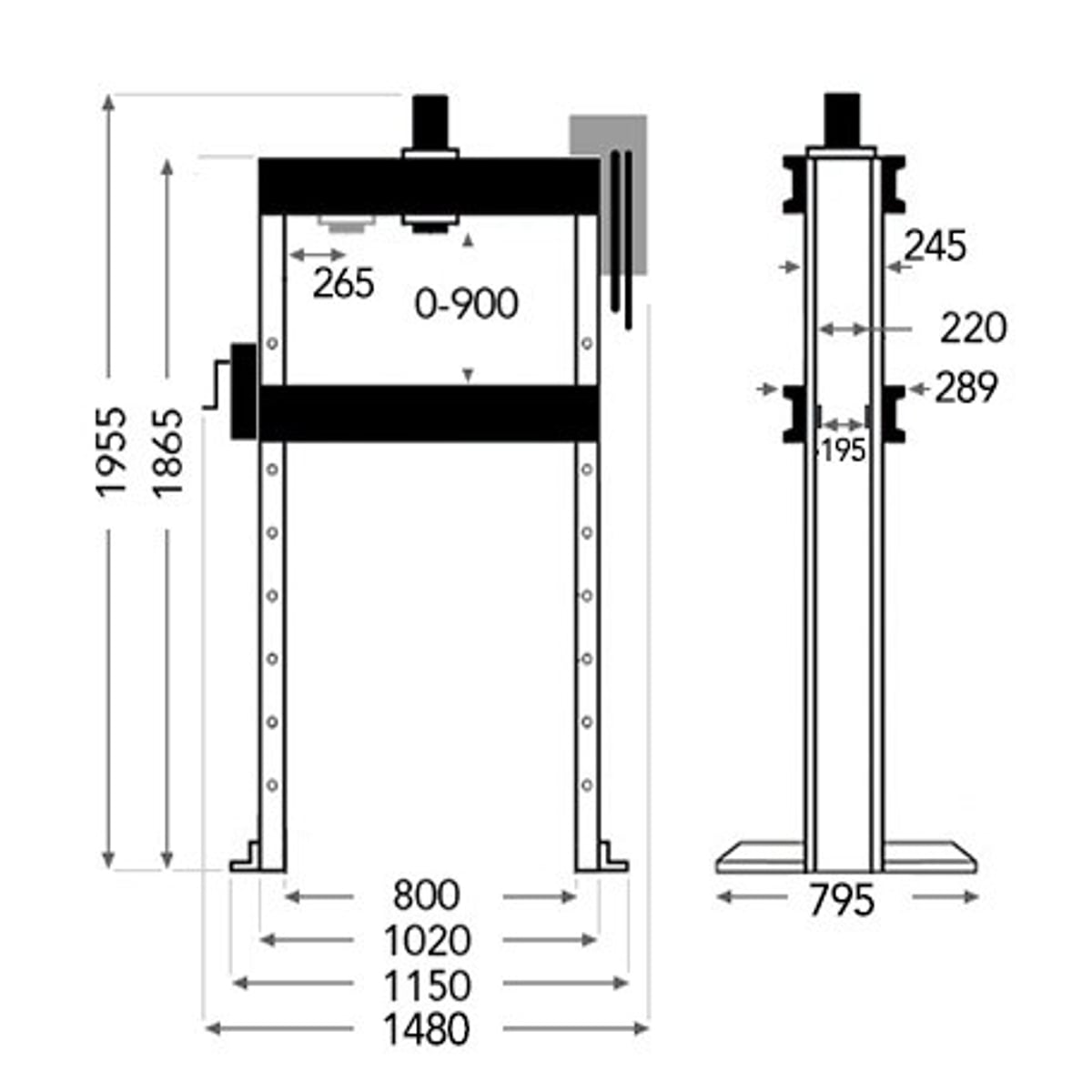

The 240mm stroke cylinder provides substantial pressing capacity, while the adjustable bed height range of 0–900mm allows you to accommodate a wide variety of workpieces. The inclusion of dual-use V-blocks and flat pressing plates ensures versatility for different types of pressing jobs. Additionally, the movable cylinder head is ideal for off-centre pressing applications, giving you more flexibility in complex tasks.
Safety and usability are prioritised with features such as a protective guard and a positioning winch with auto-lock, helping to keep operations controlled and secure. Designed to perform under high pressure, the press operates within an air pressure range of 0.75–1.0 MPa (110–150 PSI), with an air consumption of 8.8 CFM (250 L/min).
This hydraulic press is built to the highest standards, offering durability, strength, and reliable performance for heavy-duty professional use.
Key Features:
Massive 75 tonne pressing capacity for heavy-duty applications
Dual operation: hand and air-operated hydraulic pumps
240mm stroke cylinder for powerful pressing force
Adjustable bed height from 0 to 900mm for versatile use
Foot control system for improved precision and ease of operation
Movable cylinder head for off-centre pressing jobs
Includes V-blocks and flat pressing plates for flexibility
Safety guard and positioning winch with auto-lock for secure operation
Air pressure: 0.75–1.0 MPa (110–150 PSI)
Air volume: 8.8 CFM (250 L/min)
A robust and highly capable hydraulic press, engineered to deliver outstanding power, flexibility, and control for the most demanding workshop tasks.
